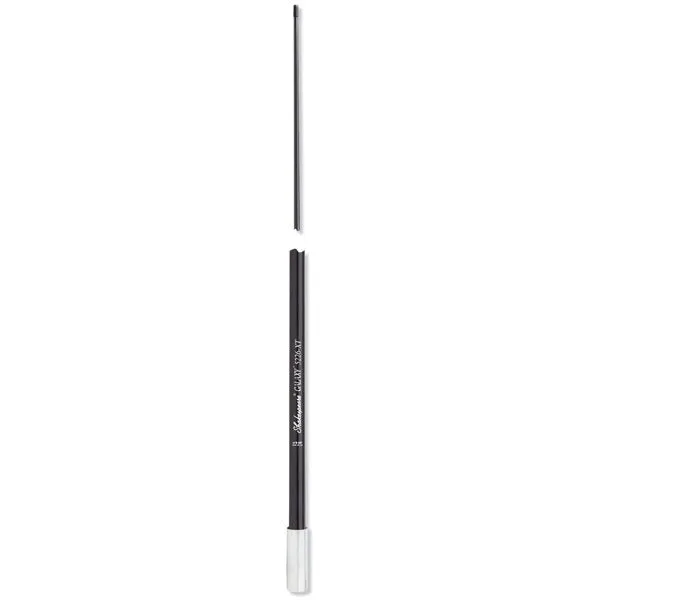

Galaxy Style 5226-XT
8 ft. (2.43 M) VHF Marine Band 6dB

Collinear-phased 5/8 wave elements

Shakespeare's best - maximizes range and quality in a great looking antenna. This is Shakespeare's classic Galaxy Style 5225 in a new, stronger, stiffer radome. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome. The 5226-XT has an exclusive Galaxy black finish.


Brass and copper elements for maximum range and efficiency
Stainless steel ferrule with standard 1-inch-14 thread
20ft RG-8/X low-loss cable plus a PL-259 connector
One section
Best applications include: T-tops and hard-tops, etc.

Suggested mount(s): 4187 5187

Galaxy 5226-XT Specifications
Band: VHF Marine Band
Antenna Gain: 6dB
Max. Input Power: 100 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 3 MHz within 2.0:1 VSWR
Ferrule: Stainless steel
Coax Supplied: 20 ft of RG-8/X
Connector Supplied: PL-259, not attached
Color/finish: Galaxy Black
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: DC Grounded - The antenna will read shorted on continuity test.
Shakespeare
Limited Warranty: 5 years
